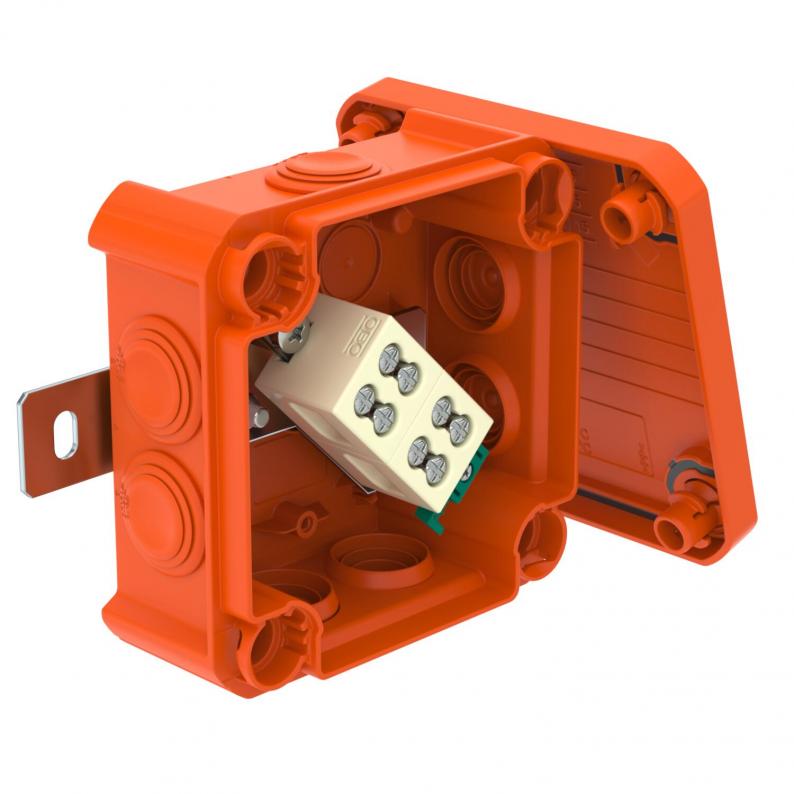

FireBox T60 with plug-in seals

Halogen-free junction box with pre-mounted, soft plug-in seals, approved for maintaining electrical functionality according to DIN 4102 Part 12. Maintenance of electrical function classes E30 to E90

Fully mounted connection unit made of high-temperature-resistant special ceramic and labelled protective conductor terminals.
Nominal cross-sections: 4 terminals at 6 mm² each (incl. PE).



High protection rating IP66, impact resistance class IK05.

Details on the cable types and manufacturers can be found in the general construction test certificate of the material testing institute MPA NRW, Erwitte.

Number of terminals incl. protective conductor terminal

Internal clearance: 100 x 100 x 48 mm
