OBO products in focus
The benefits of our OBO products:
- Customised cable routing systems and electrical installation solutions for buildings
- Intelligent cable routing along the wall, under the ceiling and in the floor
- Perfectly adapted to any room requirement / any change in use
- Suitable system accessories for sockets, data and multimedia technology
- Proven over many years
- Certified and tested products
- Form and function combined for safe, intelligent building technology
OBO Bettermann took over the Cable Management division of Ackermann at the beginning of 2006 and expanded its technical competence in the field of underfloor and cable routing systems. Since then, the Ackermann made by OBO products have been a key component of the product range of the company's electrical installation solutions.
Underfloor systems

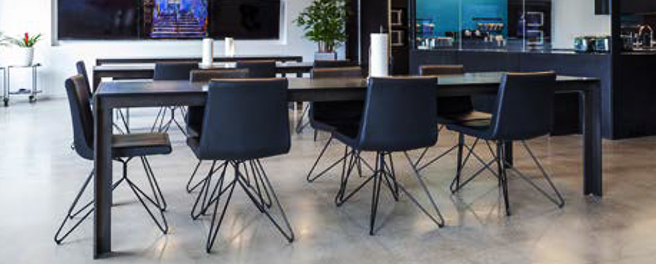

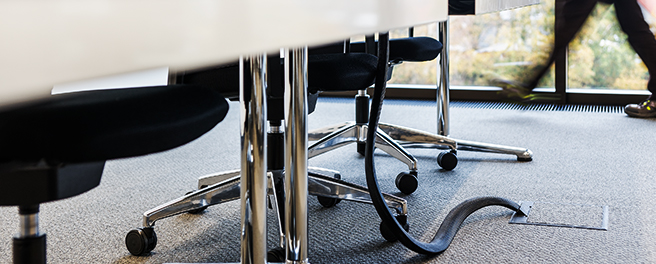

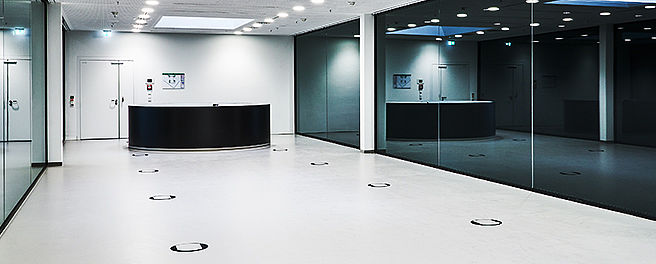

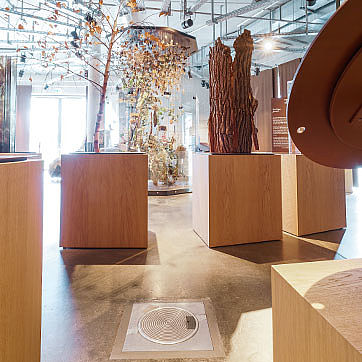

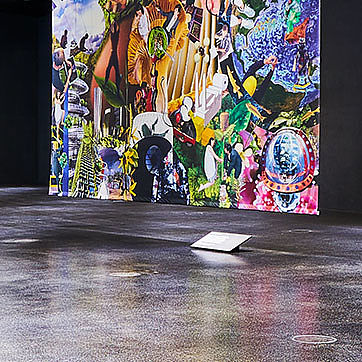

Floor sockets and floor boxes
Your advantages at a glance:
- Proven over many years in office installations, refurbishments of old buildings, exhibition spaces and public buildings
- For dry, moist and wet-care floor coverings
- For the supply of power, data and multimedia technology from the centre of the room
- Up to 12 Modul 45 devices in one floor box

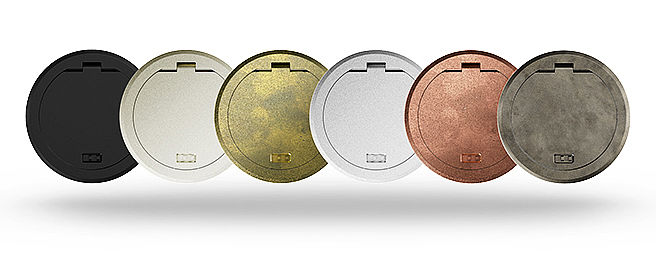

GES R2 round floor socket
- Simple, high-quality, robust, versatile – that's the GES R2
- Space for 2 Modul 45 devices and 2 data technology connections
- Simple configuration thanks to the modular design

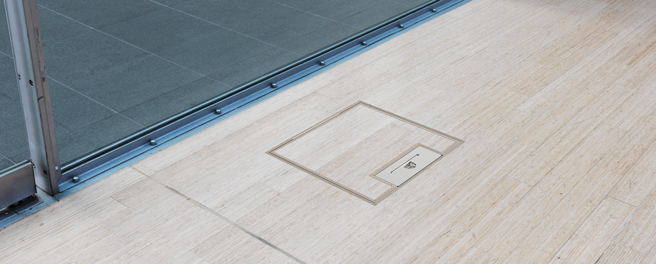

UDHOME square floor socket
- Discreet, ready for installation, high performance, universal – the UDHOME
- Space for 2 to 12 Modul 45 devices
- For all cut-resistant floor coverings, whether dry- or wet-care
GES service outlets
- THE flexible solution for a wide range of room uses – OBO's GES service outlets
- Versions made of plastic, aluminium or stainless steel
- Noise protection properties of the floor system are preserved

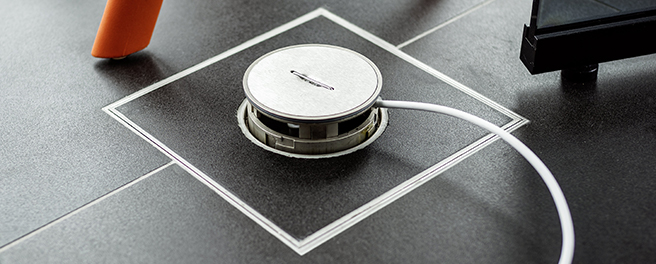

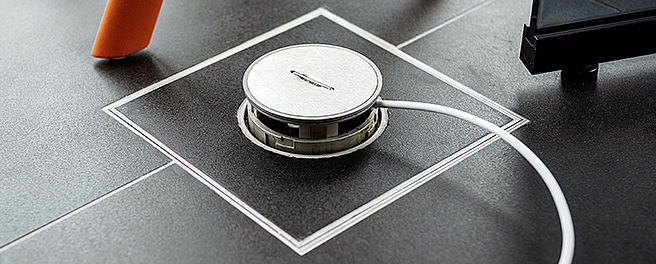

Cassettes
- High quality and perfect adaptability – the cassettes from OBO Bettermann
- Adjustable to the height of the floor and available in custom versions
- Decouplable variant for preventing footfall noise transmission

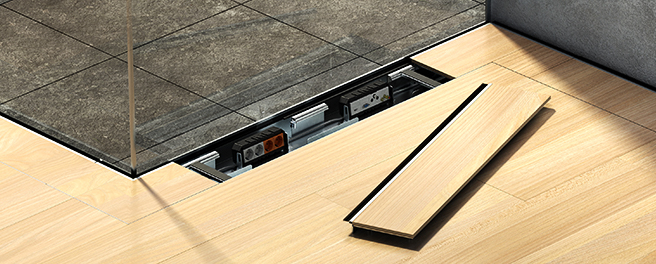

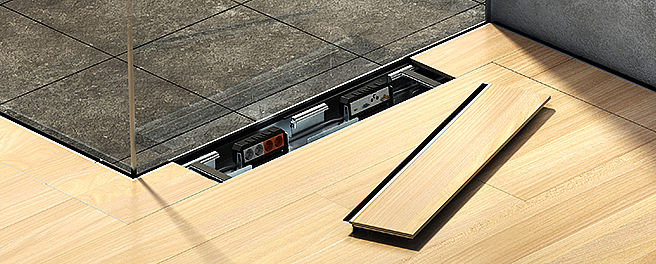

OKB open brush bar trunking system
- Inconspicuous, flexible, aesthetically pleasing – the distinguishing features of OBO's open brush bar trunking system
- The most discreet access to power and data cables in any setting
- Inconspicuous power supply from a narrow brush bar, instead of power sockets on the wall
Information for planning underfloor systems
Cable routing systems

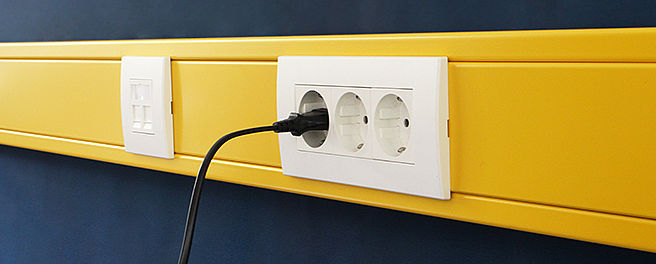

Open skirting trunking
- Practical, versatile, flexible – that's the Rapid skirting trunking
- Different versions and numerous fittings for all types of power supply
- Halogen-free and antibacterial variants

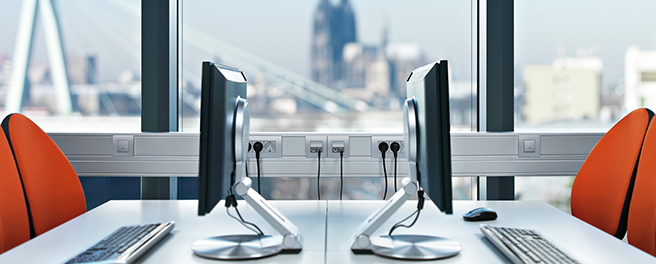

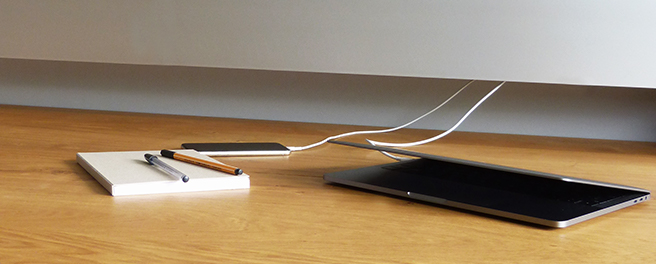

Covered skirting trunking
- Purist exterior, spacious interior – the GAD device installation trunking
- With straight, convex or curved cover
- LED strips in the trunking provide special accents

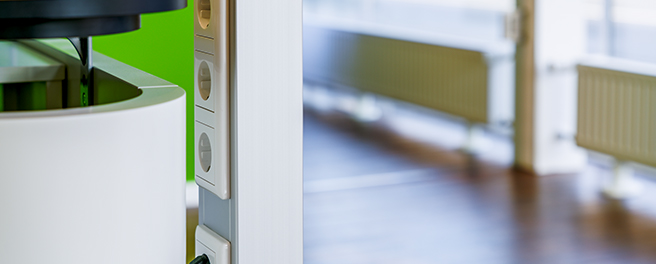

Service poles
- Supply exactly where it's needed
- Variable equipment with Modul 45 or standard sockets
- Optimal adaptation to the surroundings
Cable support systems

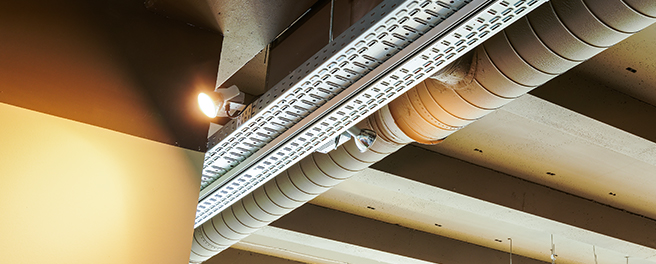

RKS Magic, MKS Magic and SKS Magic cable trays
- Simple, functional, robust – the Magic cable trays
- Unique, patented connection for quick installation
- All versions can be powder-coated in all RAL shades
Connection and fastening systems

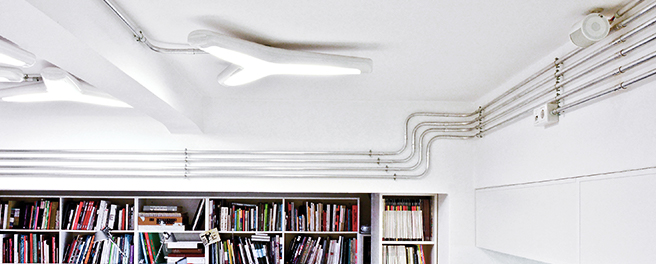

Electrical installation pipes
- Minimalist, technical charm – OBO's electrical installation pipes simply exude it
- Precision-lasered pipes for modern interiors
- Available in various materials and with a range of surfaces
Device systems

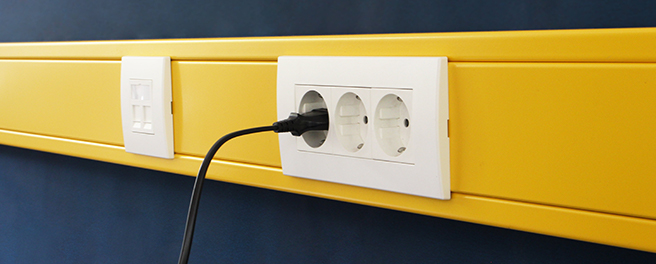

Modul 45 devices
- Many benefits in the smallest space – that's what the OBO Modul 45 devices offer
- Surfaces can be installed flush
- The right solution for every application
